Low-E glass Vertical washing machine

  • Low-E glass Vertical washing machine
  • Low-E glass Vertical washing machine
  • Low-E glass Vertical washing machine
  • Low-E glass Vertical washing machine

Low-E glass Vertical washing machine

    Pacote: Wooden Cases Package and Contianer Transfer
    produtividade: 100 sets per month
    marca: Jinan Lijiang Glass
    transporte: Ocean,Air,Land,Others
    Lugar de origem: Jinan City, Shandong Province, China
    Habilidade da fonte: 100 sets per month
    Certificados : CE&ISO9000
    porta: Qingdao Port

Descrição do produto

1600mm 1800mm Vertical Insulating Glass Washing and Drying Machine with Vertical Combining Table Combining Fragments Function
Products Description

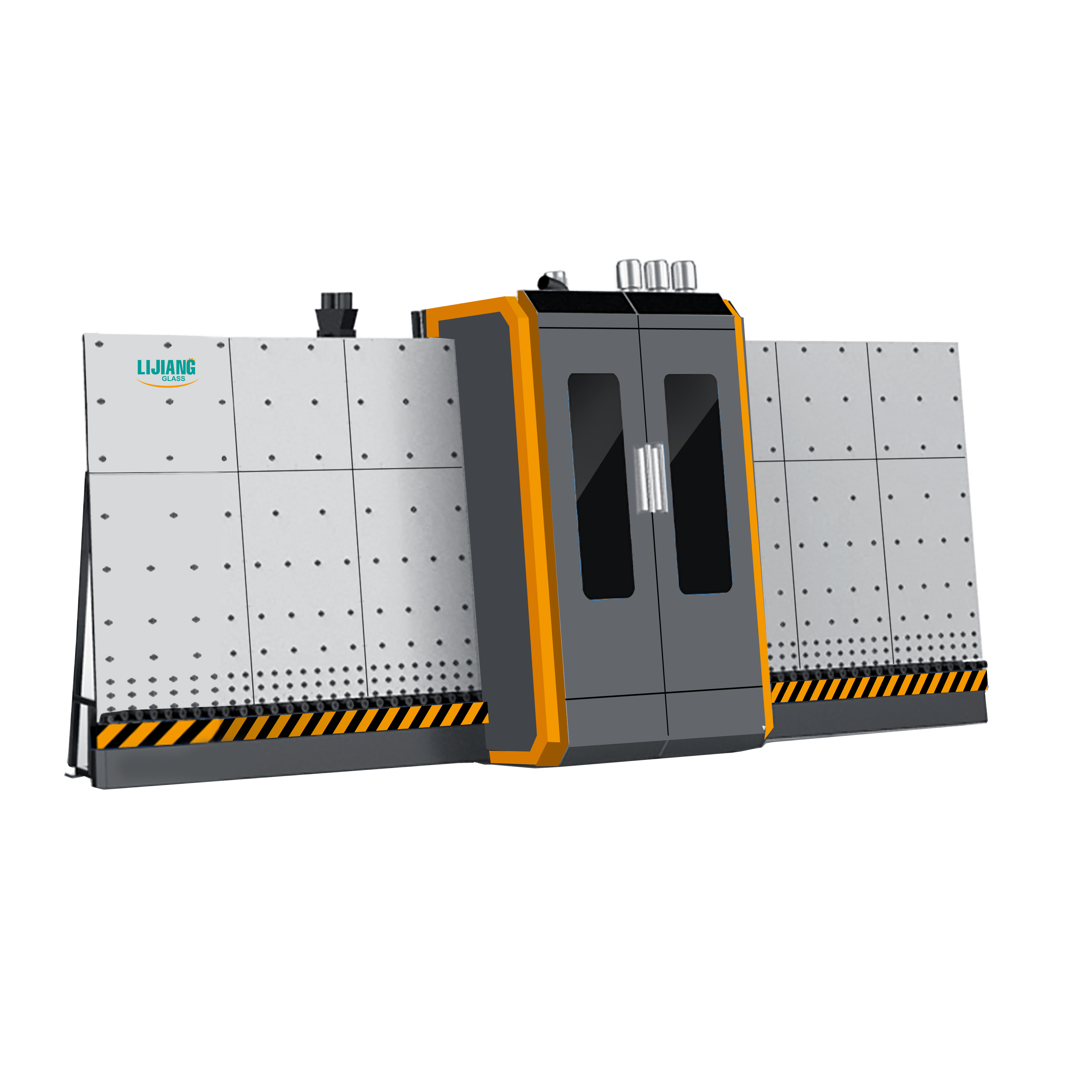

Jinan LIJIANG LJBQX2535 Insulating Glass Washing Machine
LJBQX2535 insulating glass washing machine can wash max glass of 2500mm*3500mm, more large size and less size can be optional. - Self-Diagnosis system with touch screen on computer. - Stainless steel washer with 8 ( 6 ) brushes, soft brushes from MONFORTS of Germany, hard brushes automatically open when Low-E glass input. - Rotate speed of brush frequency control. (optional) - Stainless steel air knife is automatically adjustable according to glass thickness, Max thickness to 19mm - High speed cleaning ( max 14m/min), Low noise ( max 70dB), high availability working. ( 25 second /unit) - Automatic detection of Low-E glass and alarm for coating in reverse. (optional) - Structure stepped and three-layer I.G. unit available. (optional) - Precision of plate press: ±0.3mm
Advantages & Features





Benefits & Advantages

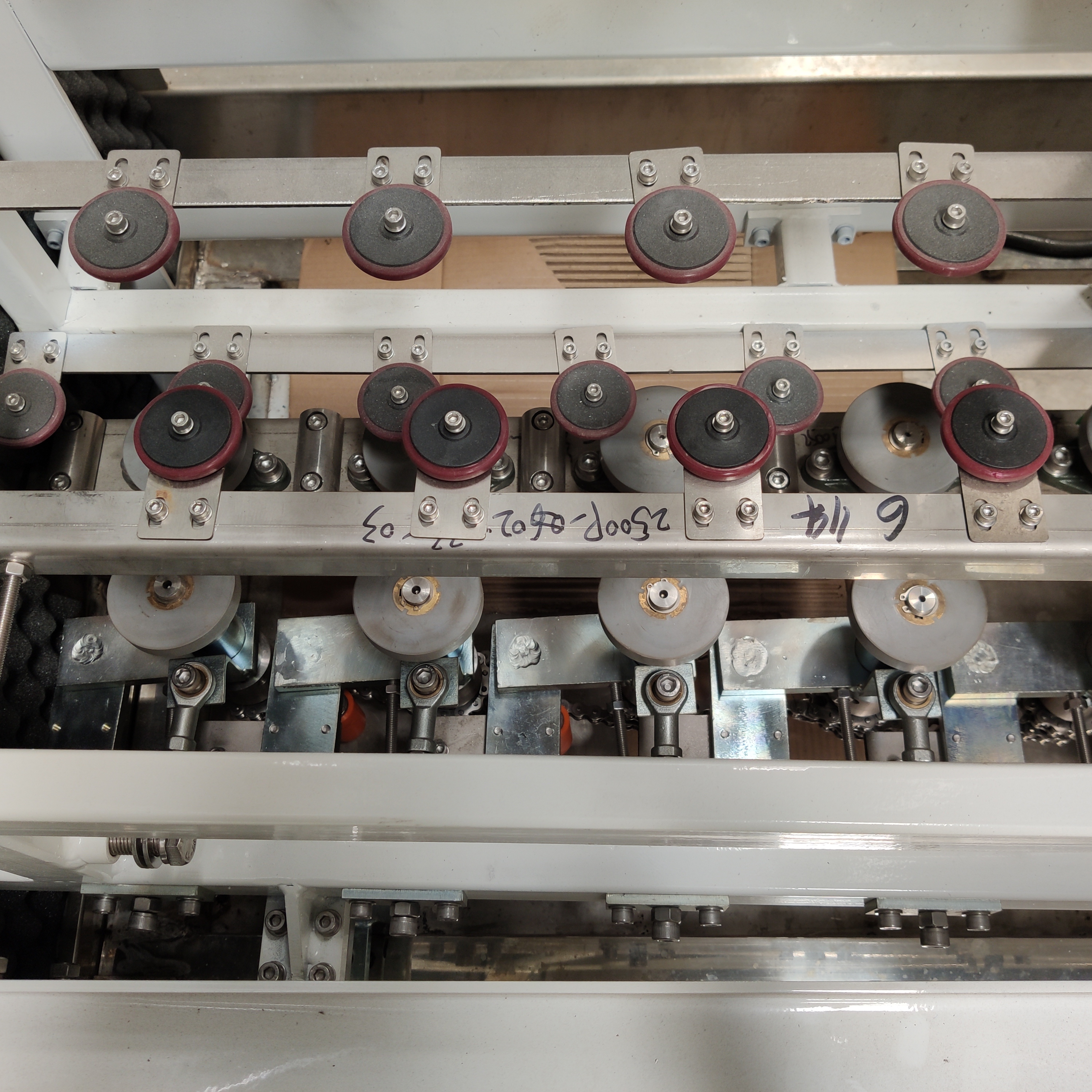

* In the washing machine ,there three pairs soft brushes all can wash low-e glass, four pairs of water spray. * The material in the washing and drying section all made by stainless steel. * The main power consumption is mostly appear in the washing and drying section of the IG line. * The air knife is float design , it always keep the right and suitable distance between the glass and air knife in the press and design section * The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transferred. No mater the glass size is big or small , it all guarantee the glass pass through smoothly. * The axle and bearing of brushes are stainless steel , that all keep the machine can washing well and live for a long time. * The who drying machine use the sound insulation design. can reduce the noise.

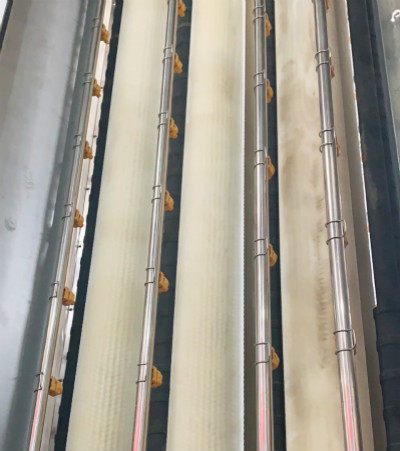

3 pairs of 0.1mm soft brushes

It has 3 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for Low-E glass.

New design of air knife

The whole washing machine uses a new design of air knife to washing and drying glass, which make the distance between the glass and the air knife in a stable value, to keep the best drying effect.

The water heating system

As different countries have different water quality, in order to ensure that the glass is washes clearly enough,adoptingair heating system, to use soft water to wash glass. What’s more, using water filter system to make water recycling, save water and keep the water clear.

The anti-noise system

Using Europe's advanced anti-noise system to create a good working environment for employees. The noise can be controlled below 90 decibels by using nylon gear and sponges.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Main Technical Parameter

Item.
Spec.
Max washing size
2000mm*2500mm
Min washing size
450mm*300mm
Glass washing speed
2-10m/min
Glass conveyor speed
45m/min
Washing brushes
3 pairs of soft brushes with 0.1mm hair
Water supply
Water consumption:0.5t/h conductivity:40μs/cm
Air supply
Flow: 0.8m/min
Air pressure
≥0.8MPa
Total power
18kw
Height
3100mm
